Metrohm Autolab

Multi Autolab/M101
Metrohm Autolab

The Multi Autolab/M101 is a multi channel potentiostat/galvanostat based on the compact Autolab PGSTAT101. It consist of a Multi Autolab Cabinet which can be fitted with up to 12 M101 modules. Each M101 is a completely independent potentiostat/galvanostat, allowing you to perform different measurements on each channel at the same time.

The Multi Autolab can be controlled from up to three different computers simultaneously, allowing to share the available channels among different users.

The Multi Autolab instruments can be complemented by a selection of optional modules. Each M101 module can be coupled to one optional module in the instrument. The maximum number of optional modules is 6. Optional modules or additional M101 modules can be installed at any time.

Multi Autolab M101
Multi Autolab M101

press to zoom
Multi Autolab M101
Multi Autolab M101

press to zoom
1/1
PGSTAT101
Metrohm Autolab

The entry level in the Autolab range of electrochemical instruments, the Autolab/PGSTAT101 in combination with the powerful NOVA software, can be used for most of the standard electrochemical techniques. Autolab/PGSTAT101 is an affordable potentiostat/galvanostat without compromising on quality and specifications, making it an ideal instrument for students and educational purposes.
The small footprint allows you to place a high quality potentiostat/galvanostat on a crowded workbench. Analog and digital inputs and outputs for interfacing and controlling external devices are available. The Autolab/PGSTAT101 comes with an internal dummy cell and a built-in analog integrator.

PGSTAT101
PGSTAT101

press to zoom
PGSTAT101
PGSTAT101

press to zoom
1/1
PGSTAT204
Metrohm Autolab

The PGSTAT204 combines the small footprint with a modular design. The instrument includes a base potentiostat/galvanostat with a compliance voltage of 20 V and a maximum current of 400 mA or 10 A in combination with the BOOSTER10A. The potentiostat can be expanded at any time with one additional module, for example the FRA32M electrochemical impedance spectroscopy (EIS) module.

The PGSTAT204 is an affordable instrument which can be located anywhere in the lab. Analog and digital inputs/outputs are available to control Autolab accessories and external devices are available. The PGSTAT204 includes a built-in analog integrator. In combination with the powerful NOVA software it can be used for most of the standard electrochemical techniques.

PGSTAT204
PGSTAT204

press to zoom
PGSTAT204
PGSTAT204

press to zoom
1/1
PGSTAT302N
Metrohm Autolab

The PGSTAT302N MBA (Multi BA) is a special version of the PGSTAT302N which can be fitted with up to 6 working electrodes. Besides the main working electrode, 5 additional bipotentiostat modules (BA module) can be installed in the instrument, alongside the optional FRA32M module.

Each BA module provides one additional working electrode. The multiple working electrodes can be used in the same electrochemical cell, sharing the common counter and reference electrode.

Autolab PGSTAT302N
Autolab PGSTAT302N

press to zoom
Autolab PGSTAT302N
Autolab PGSTAT302N

press to zoom
1/1

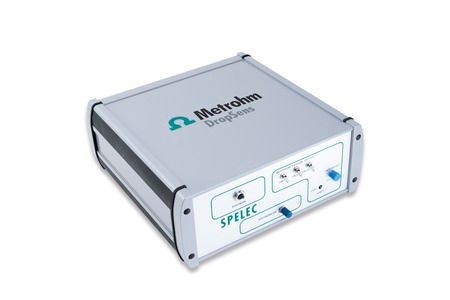

SPELEC RAMAN
Metrohm Autolab

SPELEC RAMAN is an instrument for performing spectroelectrochemical RAMAN measurements. It combines in only one box a LASER Class 3B (785 nm), a Bipotentiostat/Galvanostat and a spectrometer (wavelength range 785 – 1010 nm and Raman shift 0-2850 cm-1) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.

SPELEC RAMAN
SPELEC RAMAN

press to zoom
SPELEC RAMAN
SPELEC RAMAN

press to zoom
1/1
SPELEC VIS-NIR 350-1050 nm
Metrohm Autolab

SPELEC is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (UV-VIS wavelength range: 200-900 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.

SPELEC VIS-NIR 350-1050
SPELEC VIS-NIR 350-1050

press to zoom
SPELEC VIS-NIR 350-1050
SPELEC VIS-NIR 350-1050

press to zoom
1/1
Multi Autolab/M204
Metrohm Autolab

The Multi Autolab is a multi channel potentiostat/galvanostat based on the compact Autolab PGSTAT204. It consist of a Multi Autolab Cabinet which can be fitted with up to 12 M204 modules. Each M204 is a completely independent potentiostat/galvanostat, allowing you to perform different measurements on each channel at the same time.

The Multi Autolab can be controlled from up to three different computers simultaneously, allowing to share the available channels among different users.

The Multi Autolab instruments can be complemented by a selection of optional modules. Each M204 module can be coupled to one optional module in the instrument. The maximum number of optional modules is 6. Optional modules or additional M204 modules can be installed at any time.

Multi Autolab M204
Multi Autolab M204

press to zoom
Multi Autolab M204
Multi Autolab M204

press to zoom
1/1
PGSTAT128N
Metrohm Autolab

The entry level member of the modular Autolab instruments family, the PGSTAT128N is a low current, low noise and fast potentiostat/galvanostat capable of measuring maximum 800 mA, with a compliance voltage of 12 V. The PGSTAT128N is a high performance low cost option for electrochemical measurements in small cells.

Designed for a wide range of electrochemical applications, from corrosion measurements to the characterization of energy storage devices, this budget instrument is the ideal choice for electrochemical applications where performance is important. You can customize and enhance the capabilities of the PGSTAT128N by adding one or more of the many available optional modules or accessories.

PGSTAT128N
PGSTAT128N

press to zoom
PGSTAT128N
PGSTAT128N

press to zoom
1/1
PGSTAT302F
Metrohm Autolab

The PGSTAT302F is a special version of the PGSTAT302N which can be switched from the regular 'grounded mode' to so-called 'floating mode'. In grounded mode, the PGSTAT302F can be used with normal electrochemical cells, while in floating mode, the PGSTAT302F can be used with grounded cells or electrochemical cells in which the working electrode is connected to ground (e.g. pipelines, autoclaves, etc.).

PGSTAT 302F
PGSTAT 302F

press to zoom
PGSTAT 302F
PGSTAT 302F

press to zoom
1/1
SPELEC NIR 900-2200 nm
Metrohm Autolab

SPELEC NIR is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (NIR wavelength range: 900-2200 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.

SPELEC NIR
SPELEC NIR

press to zoom
SPELEC NIR
SPELEC NIR

press to zoom
1/1
SPELEC UV-VIS 200-900 nm
Metrohm Autolab

SPELEC1050 is an instrument for performing spectroelectrochemical measurements. It combines in only one box a Lightsource, a Bipotentiostat/Galvanostat and a Spectrometer (VIS-NIR wavelength range: 350-1050 nm) and includes a dedicated spectroelectrochemical software that allows optical and electrochemical experiments synchronization.

SPELEC UV-VIS 200-900nm
SPELEC UV-VIS 200-900nm

press to zoom
SPELEC UV-VIS 200-900nm
SPELEC UV-VIS 200-900nm

press to zoom
1/1
